Web Services Help Documentation

Each Kelio Web Service is linked to a WSDL file.

A WSDL file (Web Services Description Language) is a public interface for accessing a Web Service.

The description of this interface is based on an XML language that presents the use of the service.

To access the Web Services and their respective WSDLs, go to the Web Services List. This page lists all the main Web Services and their associated WSDLs. You can use SoapUI to test Web Services. A tutorial, which explains how to use SoapUI with our Web Services, is available here. Importing the WSDL varies depending on the language and development environment used.

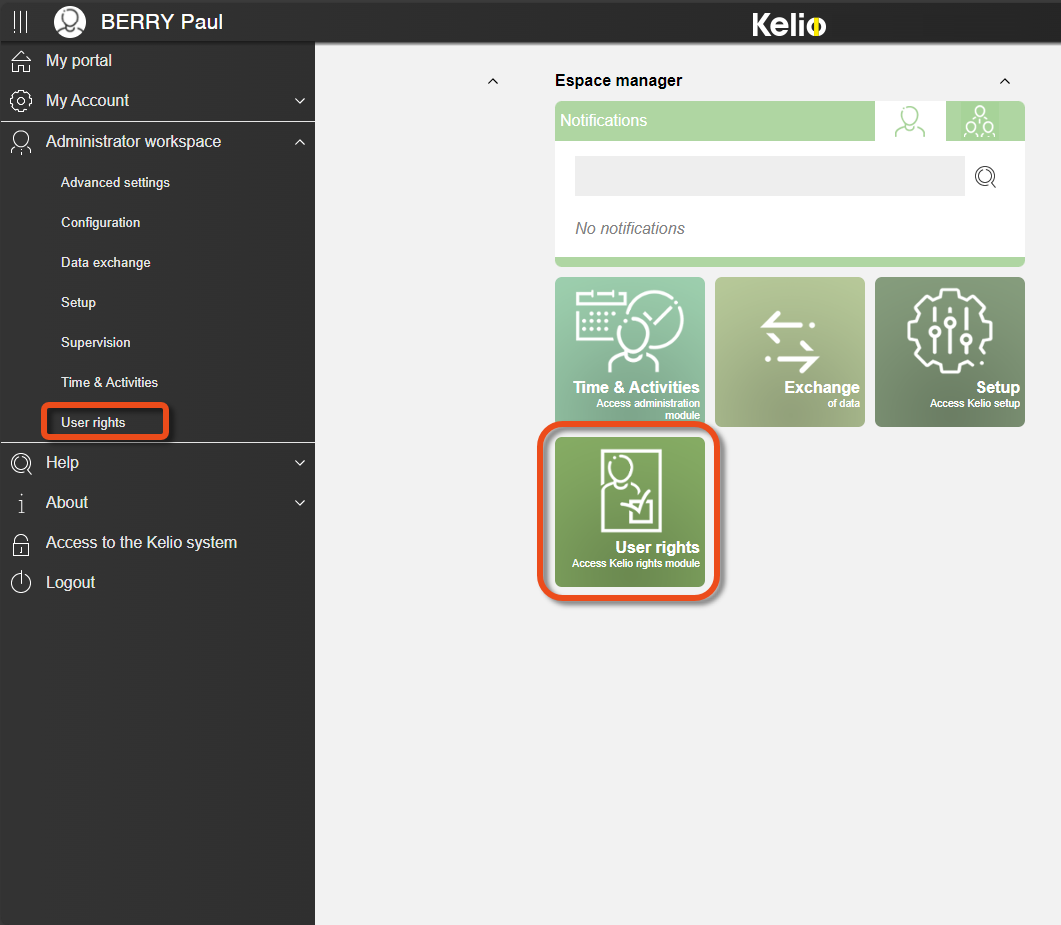

Once you are connected to Kelio, you need to go to the User rights module. The user rights administration can be accessed from the navigation menu Administrator workspace > User rights or from a shortcut on your portal.

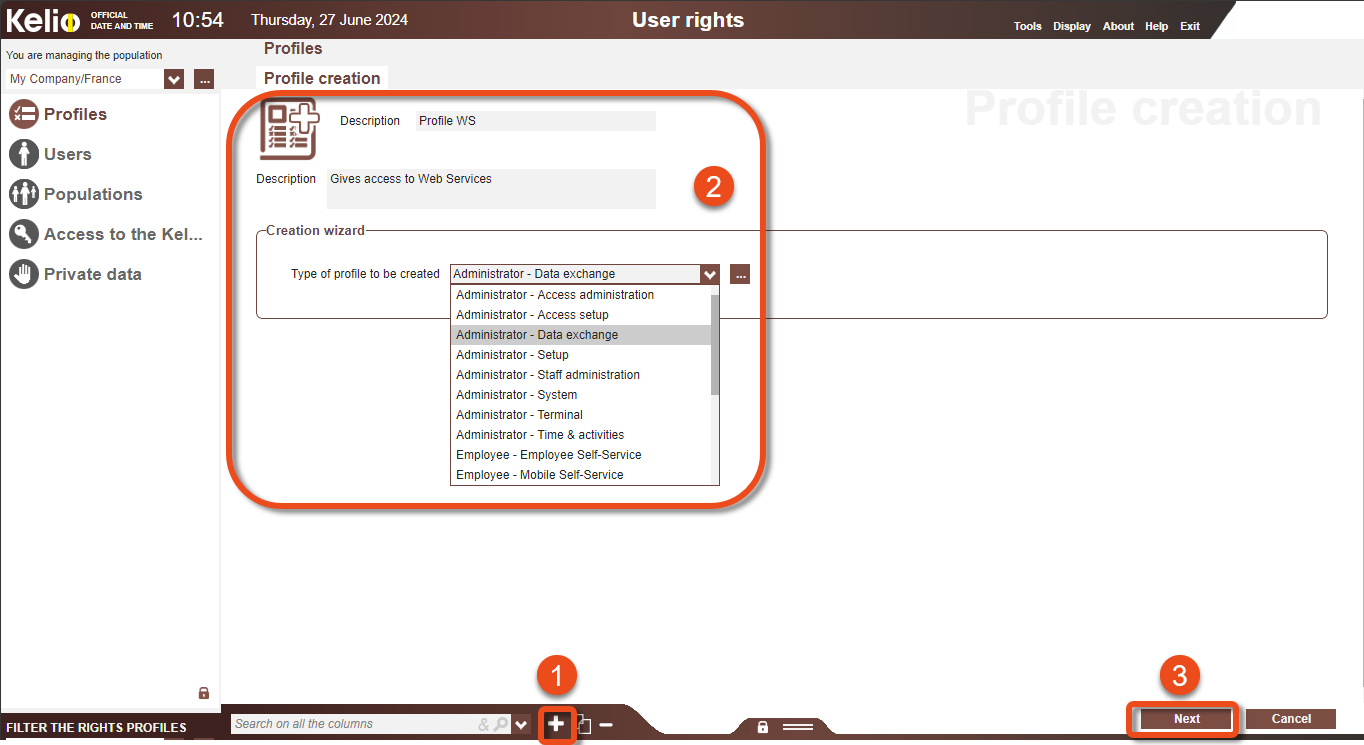

1.From the menu Profiles, click on the to display the elements for creating a profile.

2.In the creation elements, enter at least the description and choose the profile type Administrator - Data exchange.

3.Click on Next to confirm.

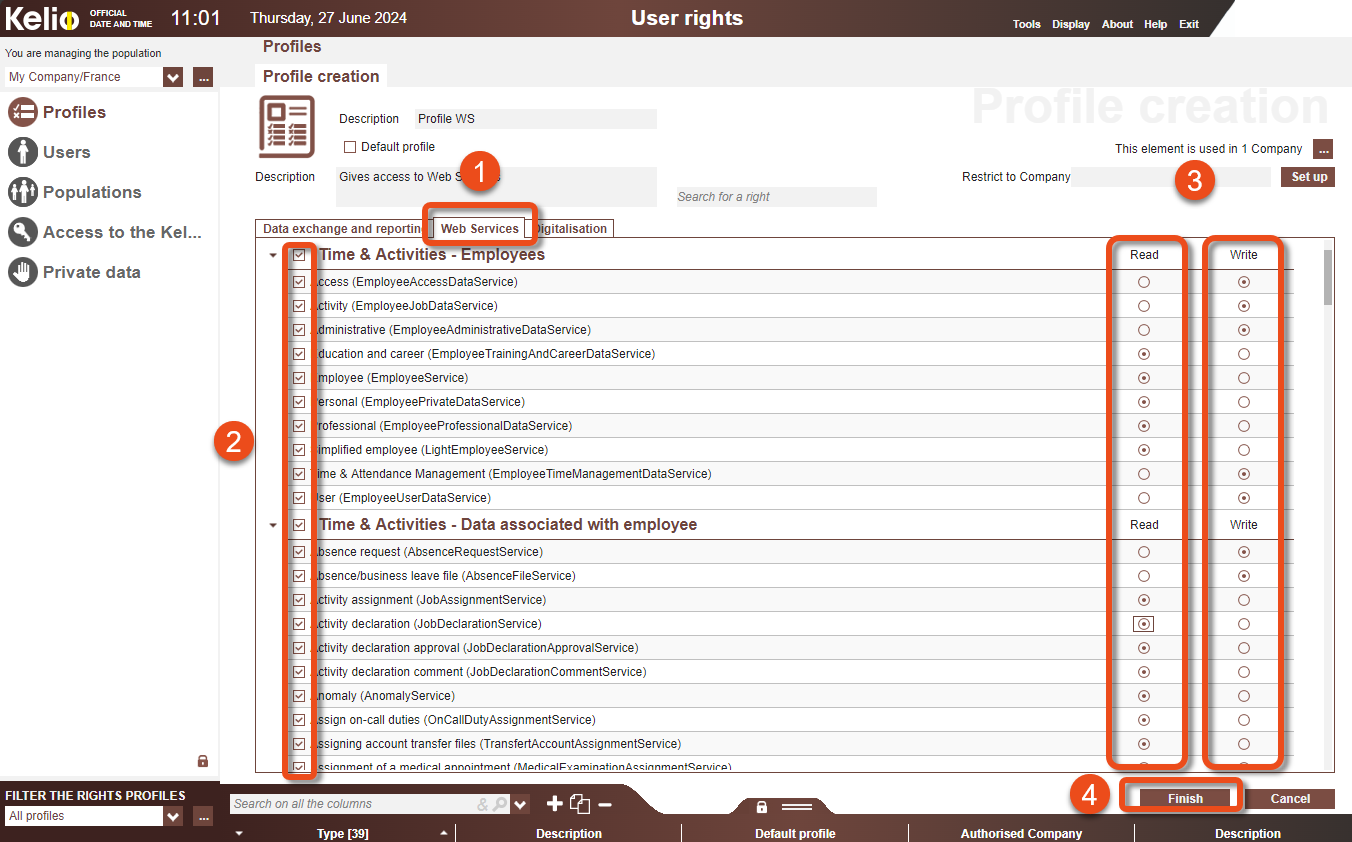

1.Go to the tab Web Services.

2.Check the Web Services you want to use.

3.Choose whether the Web Service should be used in Read mode (export methods only) or in Write mode (import and export methods).

4.Click Finish.

If the user is already created, proceed to the next step.

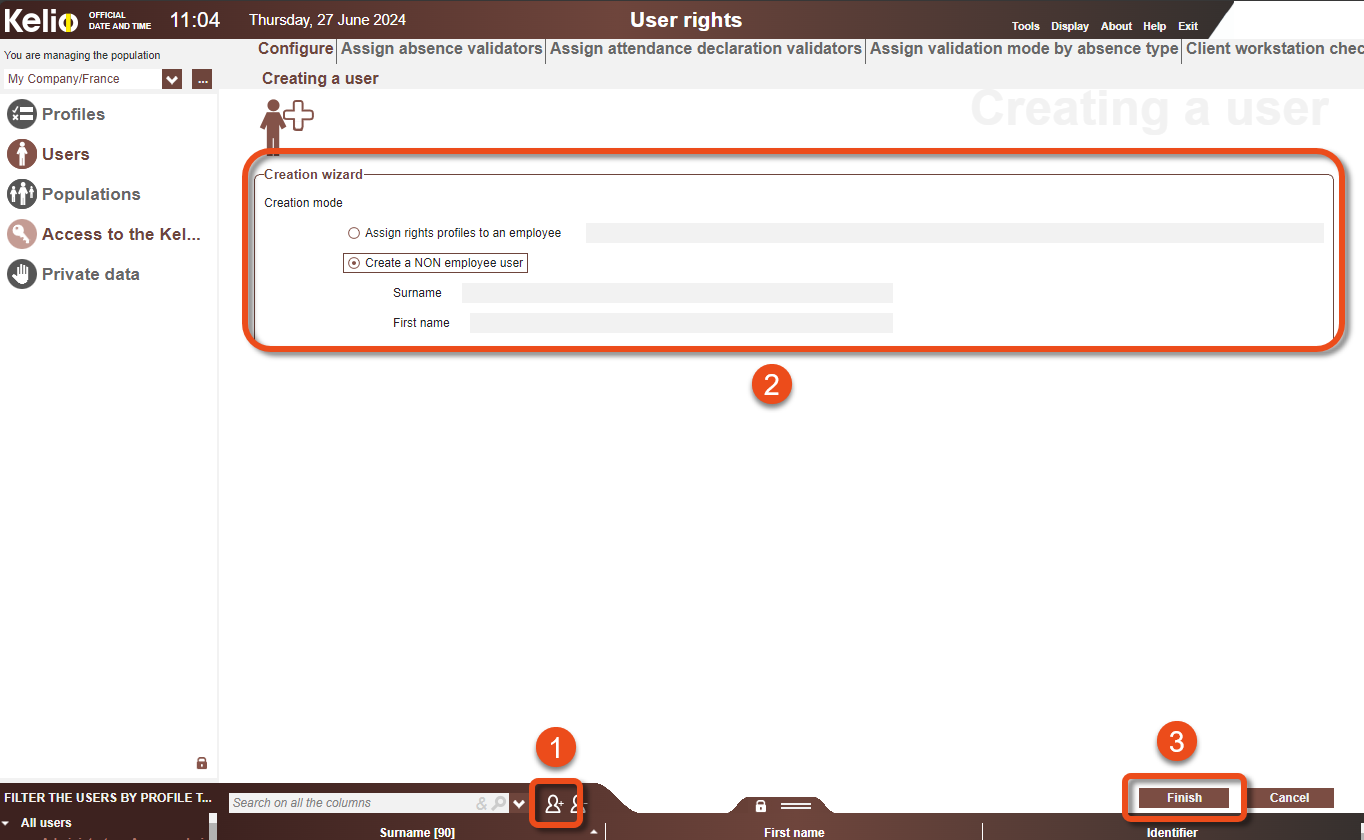

1.From the menu Users, click on the to display the elements for creating a user.

2.In these creation elements, there are two choices. Either choose an employee from the list, or create a user that is not linked to an employee.

3.Click on Finish to confirm.

If the user is new, the identifier (login) and password must be entered, and you must also check Never change password (otherwise even the first request will fail with the HTTP 401 error).

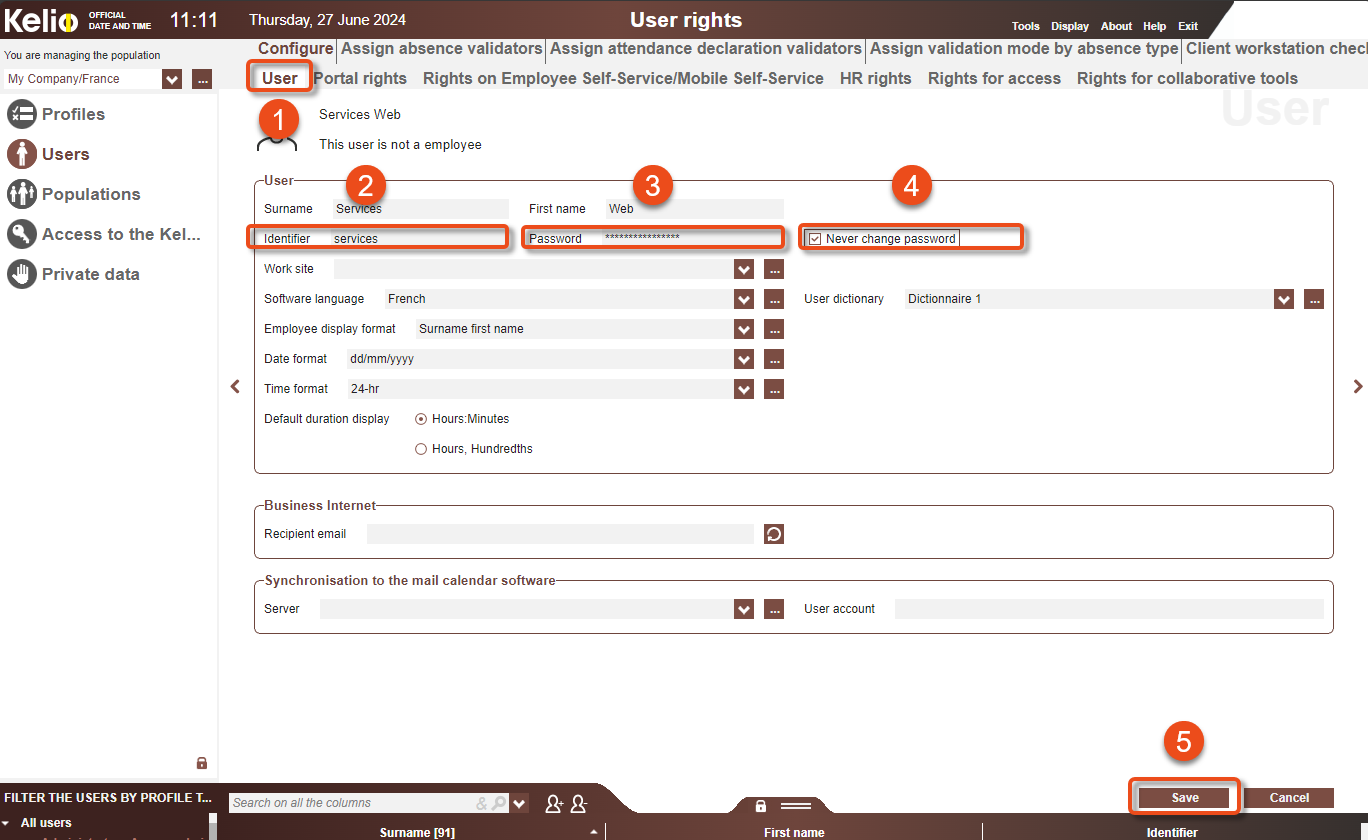

1.Go to the User tab .

2.If necessary, modify the Identifier (this will be the connection login).

3.Enter the Password.

4.Check the box Never change password.

5.Click on Save to confirm.

Once the user has been created, you need to assign the previously-created profile to it.

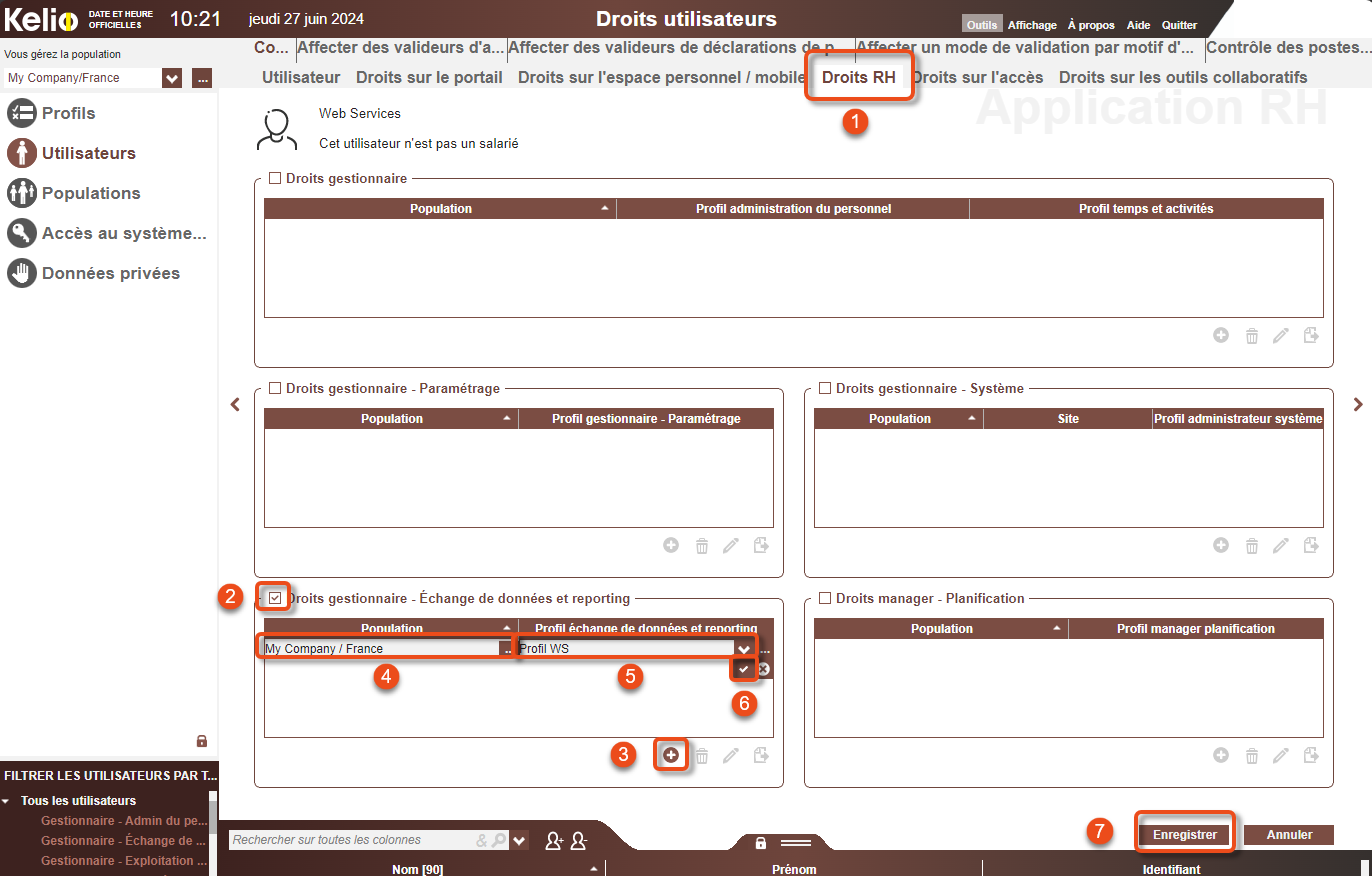

1.Go to the tab HR rights.

2.Check the box Administrator rights - Data exchange and reporting.

3.Click on to display the elements for creating the assignment.

4.Select the Population on which the user will have the right to use Web Services by clicking on the button .

5.Select the Profile you have previously created.

6.Click on the button to confirm.

7.Click on Save to confirm the assignment.

The Web Services access user has now been created!
